Foxconn L10-S3 oftewel dezelfde R10-S3



R10-S3 Barebone

nadeel
45CSX moederbord
vergelijk met andere moederborden
lsusb
lspci
dmidecode
Foutmelding tijdens booten OpenSuSE 11.1 64bit




R10-S3

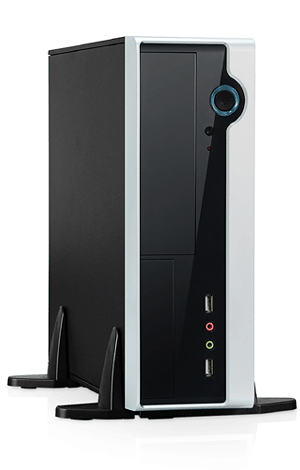

◆7.5 liter mini ITX RS233 chassis(With Bracket),supports vertical and horizontal placement.
◆ITX 45CSX MB , integrated Intel Atom 330 (Dual core) CPU, Intel 945GC+ ICH7 chipset for North & South Bridge.
◆FSP150-50GLT Power supply, AC-line powered switching power supply with active PFC (Power Factor Correction) circuit, full range input features.

Specifications
Series: Small form factor
Dimension: 282mm*95mm*315mm (with bezel)
Motherboard: 945S04
Processors Supported: Integrated dual-core Atom 330, FSB 533 MHz
Chipset: Intel 945GC+ ICH7
Memory: DDR2 533MHz * 1DIMM,Max 2 GB
VGA Graphics: Integrated
Storage Interface: SATAII *2 Up to 3Gb/s transfer speed
Expansion Slots: 1* PCI
Audio: 5.1 Channel, HDA interface, Realtek® ALC662
LAN: 10/100M LAN,Realtek® RTL8100C
Driver Bays: 1* 5.25”external
1* 3.5”external
1* 3.5”internal
Front Panel: 2 USB 2.0
1 Audio
1 Mic
1 Power button
1 Power indicator
Back Panel: 1* PS/2 keyboard port
1* PS/2 mouse port
1* Serial port
1* Parallel port
1* Audio jack supports 3 jacks
4* USB 2.0 ports
1* RJ45 LAN port
1* VGA
Power Supply: FSP150-50GLT (full-range)
Input: 115/230V AC
Low acoustics noise
Active PFC to meet EN61000-3-2
TDP
35W met 2.5" hd - 39W met 3.5" HD
Authentication: CE;FCC (for component only)
Remark: Only for reference


  • Intel® AtomTM  dual-core 330 processor mounted onboard
  • 533 MHz (FSB)
  • DDR2 533 MHz x 1 DIMM, Max. 2GB
  • 1* PCI
  • 2* SATA II
  • 5.1 channel HDA, Realtek® ALC662
  • 10/100M LAN, Realtek® RTL8100C (voor driver problemen zie onderaan)
  • 6 USB 2.0 ports

  • Nadeel

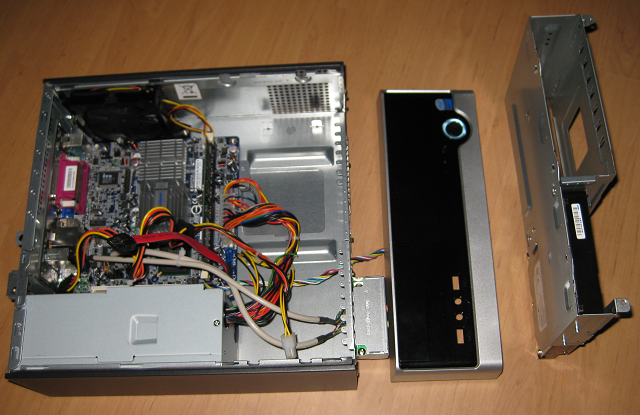

    Op het oog is het een ideale kast, maar bij het inbouwen van de 3,5" hd kom je erachter dat de voeding in de weg zit.

    Open

    45CSX Moederbord

    Specification 45CSX
    Processor: Intel® AtomTM single-core 230 processor mounted onboard
    Chipset: Intel® 945GC + ICH7
    Front Side Bus: 533 MHz (FSB)
    Memory: DDR2 533 MHz x 1 DIMM, Max. 2GB
    VGA on Die: Integrated
    Expansion Slots: 1* PCI
    IDE: N/A
    Serial ATA(SATA)/RAID: 2* SATA II
    Audio: 5.1 channel HDA by Realtek® ALC662
    LAN: 10/100M LAN by Realtek® RTL8100C
    IEEE1394: N/A
    Back Panel I/O Ports: 1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x Serial port
    1 x Parallel port
    1 x Audio jack supports 3 jacks
    4 x USB 2.0 ports
    1 x RJ45 LAN port
    1 x VGA port
    Internal I/O Connectors: 1 x ATX 24-pin power connector
    1 x 4-pin System fan connector
    1 x IrDA header
    1 x TPM header
    2 x Serial ATAII connectors
    1 x Front panel connector
    1 x Front Audio header
    1 x USB 2.0 header (one header reserved) supports additional 2 ports
    BIOS Features: 4MB flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0
    Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
    Form Factor: Mini-ITX (170mm x 170mm)


    Vergelijk met andere moederborden van Foxconn

    Vergelijk
    Model Features
    45CTP
  • Intel® AtomTM  single-core 230 processor mounted onboard
  • 533 MHz (FSB)
  • DDR2 533 MHz x 1 DIMM, Max. 2GB
  • 1* PCI
  • 2* SATA II
  • 5.1 channel HDA, Realtek® ALC662
  • 10/100M LAN, Realtek® RTL8101E
  • 8 USB 2.0 ports
  • 45CSX
  • Intel® AtomTM  dual-core 330 processor mounted onboard
  • 533 MHz (FSB)
  • DDR2 533 MHz x 1 DIMM, Max. 2GB
  • 1* PCI
  • 2* SATA II
  • 5.1 channel HDA, Realtek® ALC662
  • 10/100M LAN, Realtek® RTL8100C
  • 6 USB 2.0 ports
  • 45CS
  • Intel® AtomTM  single-core 230 processor mounted onboard
  • 533 MHz (FSB)
  • DDR2 533 MHz x 1 DIMM, Max. 2GB
  • 1* PCI
  • 2* SATA II
  • 5.1 channel HDA, Realtek® ALC662
  • 10/100M LAN, Realtek® RTL8100C
  • 6 USB 2.0 ports

  • lsusb

    mars:~ # lsusb
    Bus 004 Device 008: ID 0553:0202 STMicroelectronics Imaging Division (VLSI Vision) Aiptek PenCam 1
    Bus 004 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
    Bus 003 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
    Bus 002 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
    Bus 005 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
    Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
    mars:~ #

    lspci


    mars:~ # lspci
    00:00.0 Host bridge: Intel Corporation 82945G/GZ/P/PL Memory Controller Hub (rev 02)
    00:02.0 VGA compatible controller: Intel Corporation 82945G/GZ Integrated Graphics Controller (rev 02)
    00:1b.0 Audio device: Intel Corporation 82801G (ICH7 Family) High Definition Audio Controller (rev 01)
    00:1d.0 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #1 (rev 01)
    00:1d.1 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #2 (rev 01)
    00:1d.2 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #3 (rev 01)
    00:1d.3 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #4 (rev 01)
    00:1d.7 USB Controller: Intel Corporation 82801G (ICH7 Family) USB2 EHCI Controller (rev 01)
    00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev e1)
    00:1f.0 ISA bridge: Intel Corporation 82801GB/GR (ICH7 Family) LPC Interface Bridge (rev 01)
    00:1f.1 IDE interface: Intel Corporation 82801G (ICH7 Family) IDE Controller (rev 01)
    00:1f.2 IDE interface: Intel Corporation 82801GB/GR/GH (ICH7 Family) SATA IDE Controller (rev 01)
    00:1f.3 SMBus: Intel Corporation 82801G (ICH7 Family) SMBus Controller (rev 01)
    01:06.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL-8139/8139C/8139C+ (rev 10)
    mars:~ #

    dmidecode

    mars:~ # dmidecode
    # dmidecode 2.9
    SMBIOS 2.5 present.
    40 structures occupying 1369 bytes.
    Table at 0x000FD480.

    Handle 0x0000, DMI type 0, 24 bytes
    BIOS Information
            Vendor: American Megatrends Inc.
            Version: 080014
            Release Date: 05/08/2009
            Address: 0xF0000
            Runtime Size: 64 kB
            ROM Size: 512 kB
            Characteristics:
                    ISA is supported
                    PCI is supported
                    PNP is supported
                    APM is supported
                    BIOS is upgradeable
                    BIOS shadowing is allowed
                    Boot from CD is supported
                    Selectable boot is supported
                    BIOS ROM is socketed
                    EDD is supported
                    Print screen service is supported (int 5h)
                    8042 keyboard services are supported (int 9h)
                    Serial services are supported (int 14h)
                    Printer services are supported (int 17h)
                    CGA/mono video services are supported (int 10h)
                    ACPI is supported
                    USB legacy is supported
                    LS-120 boot is supported
                    ATAPI Zip drive boot is supported
                    BIOS boot specification is supported
                    Targeted content distribution is supported
            BIOS Revision: 8.14

    Handle 0x0001, DMI type 1, 27 bytes
    System Information
            Manufacturer: O.E.M
            Product Name: O.E.M
            Version:
            Serial Number:
            UUID: 00020003-0004-0005-0006-000700080009
            Wake-up Type: Power Switch
            SKU Number:
            Family:

    Handle 0x0002, DMI type 2, 15 bytes
    Base Board Information
            Manufacturer: FOXCONN
            Product Name: 45CS/45CSX
            Version: 1.0
            Serial Number:
            Asset Tag:
            Features:
                    Board is a hosting board
                    Board is replaceable
            Location In Chassis: To Be Filled By O.E.M.
            Chassis Handle: 0x0003
            Type: Motherboard
            Contained Object Handles: 0

    Handle 0x0003, DMI type 3, 21 bytes
    Chassis Information
            Manufacturer: To Be Filled By O.E.M.
            Type: Desktop
            Lock: Not Present
            Version: To Be Filled By O.E.M.
            Serial Number: To Be Filled By O.E.M.
            Asset Tag: To Be Filled By O.E.M.
            Boot-up State: Safe
            Power Supply State: Safe
            Thermal State: Safe
            Security Status: None
            OEM Information: 0x00000000
            Height: Unspecified
            Number Of Power Cords: 1
            Contained Elements: 0

    Handle 0x0004, DMI type 4, 40 bytes
    Processor Information
            Socket Designation: Socket437
            Type: Central Processor
            Family: Other
            Manufacturer: Intel
            ID: C2 06 01 00 FF FB E9 BF
            Version: Intel(R) Atom(TM) CPU  330   @ 1.60GHz
            Voltage: 1.2 V
            External Clock: 133 MHz
            Max Speed: 1600 MHz
            Current Speed: 1600 MHz
            Status: Populated, Enabled
            Upgrade: Other
            L1 Cache Handle: 0x0005
            L2 Cache Handle: 0x0006
            L3 Cache Handle: Not Provided
            Serial Number: To Be Filled By O.E.M.
            Asset Tag: To Be Filled By O.E.M.
            Part Number: To Be Filled By O.E.M.
            Core Count: 2
            Core Enabled: 2
            Thread Count: 4
            Characteristics:
                    64-bit capable

    Handle 0x0005, DMI type 7, 19 bytes
    Cache Information
            Socket Designation: L1-Cache
            Configuration: Enabled, Not Socketed, Level 1
            Operational Mode: Write Back
            Location: Internal
            Installed Size: 24 KB
            Maximum Size: 24 KB
            Supported SRAM Types:
                    Other
            Installed SRAM Type: Other
            Speed: Unknown
            Error Correction Type: Parity
            System Type: Data
            Associativity: Other

    Handle 0x0006, DMI type 7, 19 bytes
    Cache Information
            Socket Designation: L2-Cache
            Configuration: Enabled, Not Socketed, Level 2
            Operational Mode: Write Back
            Location: Internal
            Installed Size: 512 KB
            Maximum Size: 512 KB
            Supported SRAM Types:
                    Other
            Installed SRAM Type: Other
            Speed: Unknown
            Error Correction Type: Single-bit ECC
            System Type: Unified
            Associativity: 8-way Set-associative

    Handle 0x0007, DMI type 5, 18 bytes
    Memory Controller Information
            Error Detecting Method: 64-bit ECC
            Error Correcting Capabilities:
                    None
            Supported Interleave: One-way Interleave
            Current Interleave: One-way Interleave
            Maximum Memory Module Size: 2048 MB
            Maximum Total Memory Size: 2048 MB
            Supported Speeds:
                    Other
            Supported Memory Types:
                    DIMM
                    SDRAM
            Memory Module Voltage: 3.3 V
            Associated Memory Slots: 1
                    0x0008
            Enabled Error Correcting Capabilities:
                    None

    Handle 0x0008, DMI type 6, 12 bytes
    Memory Module Information
            Socket Designation: DIMM0
            Bank Connections: 0 1
            Current Speed: Unknown
            Type: DIMM SDRAM
            Installed Size: 1024 MB (Double-bank Connection)
            Enabled Size: 1024 MB (Double-bank Connection)
            Error Status: OK

    Handle 0x0009, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J1A1
            Internal Connector Type: None
            External Reference Designator: PS2Mouse
            External Connector Type: PS/2
            Port Type: Mouse Port

    Handle 0x000A, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J1A1
            Internal Connector Type: None
            External Reference Designator: Keyboard
            External Connector Type: PS/2
            Port Type: Keyboard Port

    Handle 0x000B, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J2A2
            Internal Connector Type: None
            External Reference Designator: USB1
            External Connector Type: Access Bus (USB)
            Port Type: USB

    Handle 0x000C, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J2A2
            Internal Connector Type: None
            External Reference Designator: USB2
            External Connector Type: Access Bus (USB)
            Port Type: USB

    Handle 0x000D, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J2A1
            Internal Connector Type: None
            External Reference Designator: COM A
            External Connector Type: DB-9 male
            Port Type: Serial Port 16550A Compatible

    Handle 0x000E, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J6A1
            Internal Connector Type: None
            External Reference Designator: Audio Mic In
            External Connector Type: Mini Jack (headphones)
            Port Type: Audio Port

    Handle 0x000F, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J6A1
            Internal Connector Type: None
            External Reference Designator: Audio Line In
            External Connector Type: Mini Jack (headphones)
            Port Type: Audio Port

    Handle 0x0010, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J6A1
            Internal Connector Type: None
            External Reference Designator: Audio Line Out
            External Connector Type: Mini Jack (headphones)
            Port Type: Audio Port

    Handle 0x0011, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J5A1
            Internal Connector Type: None
            External Reference Designator: USB3
            External Connector Type: Access Bus (USB)
            Port Type: USB

    Handle 0x0012, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J5A1
            Internal Connector Type: None
            External Reference Designator: USB4
            External Connector Type: Access Bus (USB)
            Port Type: USB

    Handle 0x0013, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J5A1
            Internal Connector Type: None
            External Reference Designator: LAN
            External Connector Type: RJ-45
            Port Type: Network Port

    Handle 0x0014, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J4A1
            Internal Connector Type: None
            External Reference Designator: LPT 1
            External Connector Type: DB-25 male
            Port Type: Parallel Port ECP/EPP

    Handle 0x0015, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J2A1
            Internal Connector Type: None
            External Reference Designator: IR
            External Connector Type: None
            Port Type: Other

    Handle 0x0016, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J3A1
            Internal Connector Type: None
            External Reference Designator: Video
            External Connector Type: DB-15 female
            Port Type: Video Port

    Handle 0x0017, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J2F1 - System FAN
            Internal Connector Type: Other
            External Reference Designator: Not Specified
            External Connector Type: None
            Port Type: Other

    Handle 0x0018, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J9G2 - FNT USB
            Internal Connector Type: Other
            External Reference Designator: Not Specified
            External Connector Type: None
            Port Type: Other

    Handle 0x0019, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J6C3 - FP AUD
            Internal Connector Type: Other
            External Reference Designator: Not Specified
            External Connector Type: None
            Port Type: Other

    Handle 0x001A, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J9H1 - FRONT PNL
            Internal Connector Type: 9 Pin Dual Inline (pin 10 cut)
            External Reference Designator: Not Specified
            External Connector Type: None
            Port Type: Other

    Handle 0x001B, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J2H1 - MAIN POWER
            Internal Connector Type: Other
            External Reference Designator: Not Specified
            External Connector Type: None
            Port Type: Other

    Handle 0x001C, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: SATA1
            Internal Connector Type: Other
            External Reference Designator: Not Specified
            External Connector Type: None
            Port Type: Other

    Handle 0x001D, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: SATA2
            Internal Connector Type: Other
            External Reference Designator: Not Specified
            External Connector Type: None
            Port Type: Other

    Handle 0x001E, DMI type 8, 9 bytes
    Port Connector Information
            Internal Reference Designator: J9G1 - TPM
            Internal Connector Type: Other
            External Reference Designator: Not Specified
            External Connector Type: None
            Port Type: Other

    Handle 0x001F, DMI type 9, 13 bytes
    System Slot Information
            Designation: PCI1
            Type: 32-bit PCI
            Current Usage: Available
            Length: Short
            ID: 1
            Characteristics:
                    3.3 V is provided
                    Opening is shared
                    PME signal is supported

    Handle 0x0020, DMI type 13, 22 bytes
    BIOS Language Information
            Installable Languages: 1
                    en|US|iso8859-1
            Currently Installed Language: en|US|iso8859-1

    Handle 0x0021, DMI type 15, 55 bytes
    System Event Log
            Area Length: 1008 bytes
            Header Start Offset: 0x1810
            Header Length: 16 bytes
            Data Start Offset: 0x1820
            Access Method: General-purpose non-volatile data functions
            Access Address: 0x0002
            Status: Valid, Not Full
            Change Token: 0x00000000
            Header Format: Type 1
            Supported Log Type Descriptors: 9
            Descriptor 1: Single-bit ECC memory error
            Data Format 1: Multiple-event handle
            Descriptor 2: Multi-bit ECC memory error
            Data Format 2: Multiple-event handle
            Descriptor 3: Parity memory error
            Data Format 3: Multiple-event
            Descriptor 4: I/O channel block
            Data Format 4: Multiple-event
            Descriptor 5: POST error
            Data Format 5: POST results bitmap
            Descriptor 6: PCI parity error
            Data Format 6: Multiple-event handle
            Descriptor 7: PCI system error
            Data Format 7: Multiple-event handle
            Descriptor 8: System limit exceeded
            Data Format 8: Multiple-event system management
            Descriptor 9: OEM-specific
            Data Format 9: POST results bitmap

    Handle 0x0022, DMI type 16, 15 bytes
    Physical Memory Array
            Location: System Board Or Motherboard
            Use: System Memory
            Error Correction Type: None
            Maximum Capacity: 4 GB
            Error Information Handle: Not Provided
            Number Of Devices: 1

    Handle 0x0023, DMI type 19, 15 bytes
    Memory Array Mapped Address
            Starting Address: 0x00000000000
            Ending Address: 0x0003FFFFFFF
            Range Size: 1 GB
            Physical Array Handle: 0x0022
            Partition Width: 0

    Handle 0x0024, DMI type 17, 27 bytes
    Memory Device
            Array Handle: 0x0022
            Error Information Handle: Not Provided
            Total Width: 64 bits
            Data Width: 64 bits
            Size: 1024 MB
            Form Factor: DIMM
            Set: None
            Locator: DIMM0
            Bank Locator: BANK0
            Type: SDRAM
            Type Detail: Synchronous
            Speed: Unknown
            Manufacturer: Manufacturer0
            Serial Number: SerNum0
            Asset Tag: AssetTagNum0
            Part Number: PartNum0

    Handle 0x0025, DMI type 20, 19 bytes
    Memory Device Mapped Address
            Starting Address: 0x00000000000
            Ending Address: 0x0003FFFFFFF
            Range Size: 1 GB
            Physical Device Handle: 0x0024
            Memory Array Mapped Address Handle: 0x0023
            Partition Row Position: 1
            Interleaved Data Depth: 1

    Handle 0x0026, DMI type 32, 20 bytes
    System Boot Information
            Status: No errors detected

    Handle 0x0027, DMI type 127, 4 bytes
    End Of Table

    Foutmelding netwerkkaart tijdens installatie SuSE 11.1 64bit

    Tijdens het booten van de machine is er de volgende foutmelding:
    "Try the "8139too" driver instead

    8139cp: 10/100 PCI Ethernet driver v1.3 (Mar 22, 2004)
    8139cp 0000:01:06.0: This (id 10ec:8139 rev 10) is not an 8139C+ compatible chip
    8139cp 0000:01:06.0: Try the "8139too" driver instead.
    8139too Fast Ethernet driver 0.9.28
    vendor=8086 device=244e
    8139too 0000:01:06.0: PCI INT A -> GSI 19 (level, low) -> IRQ 19
    eth0: RealTek RTL8139 at 0xffffc20004508c00, 00:22:68:61:35:66, IRQ 19
    eth0:  Identified 8139 chip type 'RTL-8100B/8139D'

    De truuk is nu SuSE vertellen dat hij de "8139cp" module niet moet laden.

    dit doe je met de aan het einde van /etc/modprode.d/blacklist het volgende toevoegen:

    # foutmelding tijdens booten:
    # Try the "8139too" driver instead.
    blacklist 8139cp



    back
